MechanismStandard (Parameter Control)

class MechanismStandard

Syntax:

ms = n.MechanismStandard(name_str)
ms = n.MechanismStandard(name_str, vartype)
Description:

In Python, consider the use of sec.psection() which encapsulates MechanismType and MechanismStandard so as to return a dictionary.

With no vartype or vartype = 1, this provides storage for parameter values of a membrane mechanism or point process. This class is useful in maintaining a default set of parameters and can be used to specify values for a set of sections.

name_str is a density mechanism such as hh or a point process such as VClamp. A MechanismStandard instance, when created, contains default values for all parameters associated with the mechanism.

In combination with the MechanismType class it is possible to create generic graphical interface widgets that are independent of the particular mechanism and parameter names.

If vartype = 1, 2, or 3, the storage is for PARAMETER, ASSIGNED, or STATE variables respectively. If vartype = 0, the storage is for all three types.

If vartype = -1, the count and names (and array size) of the GLOBAL variables are accessible, but any other method will generate an error message.

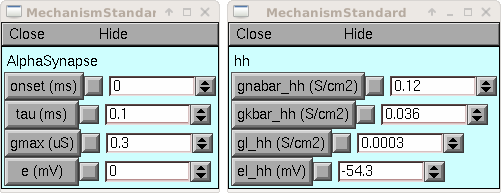

Example:

from neuron import n, gui
ms1 = n.MechanismStandard('hh')
ms2 = n.MechanismStandard('AlphaSynapse')
ms2.set('gmax', 0.3)
ms1.panel()
ms2.panel()

ms1 = n.MechanismStandard("hh")
ms2 = n.MechanismStandard("AlphaSynapse")
ms2.set("gmax", .3)
ms1.panel()
ms2.panel()
../../_images/mechanismstandard.png

Example:

The following example prints all the names associated with POINT_PROCESS and SUFFIX mechanisms.

from neuron import n, gui

soma = n.Section("soma")
def pname(msname):
    s = n.ref('')
    for i in range(-1, 4):
        ms = n.MechanismStandard(msname, i)
        print(f'\n{msname}   vartype={i}')
        for j in range(ms.count()):
            k = ms.name(s, j)
            print(f'{j:<5} {s[0]:<20} size={k}')

def ptype():
    msname = n.ref('')
    for i in range(2):
        mt = n.MechanismType(i)
        for j in range(mt.count()):
            mt.select(j)
            mt.selected(msname)
            print(f'\n\n{msname[0]} mechanismtype={j}')
            pname(msname[0])


ptype()

Example:

The following example provides a function get_mech_globals that returns a list of all of a mechanism’s global (or per-thread-global) variables. As running the code shows, there are six such variables (all per-thread-global) for the hh mechanism. These are used to temporarily share limiting values and time constant information between functions in the NMODL file; their per-thread-global nature means that the memory is reused for subsequent locations within a given thread, but that different threads do not interfere with each other.

from neuron import n

def get_mech_globals(mechname):
    ms = n.MechanismStandard(mechname, -1)
    name = n.ref('')
    mech_globals = []
    for j in range(ms.count()):
        ms.name(name, j)
        mech_globals.append(name[0])
    return mech_globals

print(get_mech_globals('hh'))

Warning

MechanismStandard only supports the names of mechanisms as strings, not the mechanism objects. e.g., you can pass 'hh' but not n.hh.

If you have a density mechanism, e.g., mech = n.hh, beginning with NEURON 9, you can get the name of the mechanism as a string with mech.name. You can then use this string with MechanismStandard. For example:

from neuron import n

mech = n.hh
ms = n.MechanismStandard(mech.name)
ms.panel()

See also

MechanismType

Syntax:

ms = new MechanismStandard("name")

ms = new MechanismStandard("name", vartype)

Description:

With no vartype or vartype = 1, this provides storage for parameter values of a membrane mechanism or point process. This class is useful in maintaining a default set of parameters and can be used to specify values for a set of sections.

name is a density mechanism such as hh or a point process such as VClamp. A MechanismStandard instance, when created, contains default values for all parameters associated with the mechanism.

In combination with the MechanismType class it is possible to create generic graphical interface widgets that are independent of the particular mechanism and parameter names.

If vartype = 1, 2, or 3, the storage is for PARAMETER, ASSIGNED, or STATE variables respectively. If vartype = 0, the storage is for all three types.

If vartype = -1, the count and names (and array size) of the GLOBAL variables are accessible, but any other method will generate an error message.

Example:

objref ms1, ms2
ms1 = new MechanismStandard("hh")
ms2 = new MechanismStandard("AlphaSynapse")
ms2.set("gmax", .3)
ms1.panel()
ms2.panel()

The following example prints all the names associated with POINT_PROCESS and SUFFIX mechanisms.

create soma
access soma


objref ms, mt
strdef s, msname
proc pname() {local i, j, k
    for i=-1,3 {
            ms = new MechanismStandard($s1, i)
            print "\n", $s1, "  vartype=", i
            for j=0, ms.count()-1 {
                    k = ms.name(s, j)
                    print j, s, " size=", k
            }
    }
}


proc ptype() {local i, j
    for i=0,1 {
            mt = new MechanismType(i)
            for j=0, mt.count-1 {
                    mt.select(j)
                    mt.selected(msname)
print "\n\n", msname, " mechanismtype=", j
                    pname(msname)
            }
    }
}


ptype()

See also

MechanismType

MechanismStandard.panel()
Syntax:
ms.panel()
ms.panel("string")
Description:

Popup a panel of parameters for this mechanism. It’s a good idea to set the default values before generating the panel.

With no argument the first item in the panel will be the name of the mechanism. Otherwise the string is used as the first item label.

See also

nrnglobalmechmenu(), nrnmechmenu(), nrnpointmenu()

Syntax:

ms.panel()

ms.panel("string")

Description:

Popup a panel of parameters for this mechanism. It’s a good idea to set the default values before generating the panel.

With no argument the first item in the panel will be the name of the mechanism. Otherwise the string is used as the first item label.

See also

nrnglobalmechmenu(), nrnmechmenu(), nrnpointmenu()

MechanismStandard.action()
Syntax:
ms.action(py_callback)
Description:

py_callback is executed when any variable is changed in the panel. The callback is sent three parameters; in order: the MechanismStandard object, the index of the changed item in the object, and a third argument indicating position in an array (or 0 if the parameter is not an array; this is the usual case). The value is in n.hoc_ac_ and this value may also be read via

nameref = n.ref("")
ms.name(nameref, i)
value = ms.get(nameref[0], j)

Example:

from neuron import n, gui

soma = n.Section('soma')
axon = n.Section('axon')
dend = [n.Section(f'dend[{i}]' for i in range(3)]

n.hh.insert(axon)
n.pas.insert(dend)  # puts into all dendrites in the list

n.xpanel("Updated when MechanismStandard is changed")
for i, sec in enumerate(dend):
    n.xvalue(f"dend[{i}](0.5).pas.g", sec(0.5).pas._ref_g)

n.xpanel()

def change_pas(ms, i, j):
    for sec in n.allsec():
        if sec.has_membrane('pas'):
            ms.out()

ms = n.MechanismStandard('pas')
ms.action(change_pas)
ms.panel()

Note

Support for Python callbacks for this method was added in NEURON 7.5.

Syntax:

ms.action("statement")

Description:

action to be executed when any variable is changed in the panel. The hoc variable hoc_ac_ is set to the index of the variable (0 to count-1).

Example:

forall delete_section()

create soma, axon, dend[3]
forsec "a" insert hh
forsec "d" insert pas
xpanel("Updated when MechanismStandard is changed")
xvalue("dend[0].g_pas")
xvalue("dend[1].g_pas")
xvalue("dend[2].g_pas")
xpanel()
objref ms
ms = new MechanismStandard("pas")
ms.action("change_pas()")
ms.panel()


proc change_pas() {
    forall if(ismembrane("pas")) {
            ms.out()
    }
}
MechanismStandard._in()
Syntax:
ms._in(sec=section)
ms._in(x, sec=section)
ms._in(pointprocess)
ms._in(mechanismstandard)
Description:

copies parameter values into this mechanism standard from …

ms._in(sec=section)

the mechanism located in first segment of section

ms._in(x, sec=section)

the mechanism located in the segment section(x). (Note that x=0 and 1 are considered to lie in the 0+ and 1- segments respectively.

ms._in(pointprocess)

the point process object

ms._in(mechanismstandard)

another mechanism standard

If the source is not the same type as the standard then nothing happens.

Example:

from neuron import n

s = n.Section('soma')
s.insert(n.hh)
s(0.5).hh.gnabar = 0.5

ms = n.MechanismStandard('hh')
ms.set("gnabar_hh", 0.3)

print(ms.get("gnabar_hh"))
ms._in(sec=s)
print(ms.get("gnabar_hh"))

Note

This is the same as the HOC method ms.in, however the name had to be changed for Python due to in being a keyword in Python.

Note

Python support for this method was added in NEURON 7.5.

Not supported. Use MechanismStandard.in() instead.

Not supported. Use MechanismStandard.in() instead.

MechanismStandard.in()

Not supported. Use MechanismStandard._in() instead.

Syntax:

ms.in()

ms.in(x)

ms.in(pointprocess)

ms.in(mechanismstandard)

Description:

copies parameter values into this mechanism standard from …

ms.in()

the mechanism located in first segment of the currently accessed section.

ms.in(x)

the mechanism located in the segment containing x of the currently accessed section. (Note that x=0 and 1 are considered to lie in the 0+ and 1- segments respectively so a proper iteration uses for(x, 0). See for.

ms.in(pointprocess)

the point process object

ms.in(mechanismstandard)

another mechanism standard

If the source is not the same type as the standard then nothing happens.

MechanismStandard.out()
Syntax:
ms.out(sec=section)
ms.out(x, sec=section)
ms.out(pointprocess)
ms.out(mechanismstandard)
Description:

copies parameter values from this mechanism standard to …

ms.out(sec=section)

the mechanism located in section (all segments).

ms.out(x, sec=section)

the mechanism located in section in the segment containing x.(Note that x=0 and 1 are considered to lie in the 0+ and 1- segments respectively)

ms.out(pointprocess)

the point process argument

ms.out(mechanismstandard)

another mechanism standard

If the target is not the same type as the standard then nothing happens.

Syntax:

ms.out()

ms.out(x)

ms.out(pointprocess)

ms.out(mechanismstandard)

Description:

copies parameter values from this mechanism standard to …

ms.out()

the mechanism located in the currently accessed section (all segments).

ms.out(x)

the mechanism located in the currently accessed section in the segment containing x.(Note that x=0 and 1 are considered to lie in the 0+ and 1- segments respectively)

ms.out(pointprocess)

the point process argument

ms.out(mechanismstandard)

another mechanism standard

If the target is not the same type as the standard then nothing happens.

MechanismStandard.set()
Syntax:
ms.set('varname', val [, arrayindex])
Description:

sets the parameter in the standard to val. If the variable is an array, then the optional index can be specified.

varname follows the HOC form convention of name_mech; e.g. gnabar_hh.

See MechanismStandard.out() for an example.

Syntax:

ms.set("varname", val [, arrayindex])

Description:

sets the parameter in the standard to val. If the variable is an array, then the optional index can be specified.

MechanismStandard.get()
Syntax:
val = ms.get('varname' [, arrayindex])
Description:

returns the value of the parameter. If the variable is actually a POINTER and it is nil, then return -1e300.

varname follows the HOC form convention of name_mech; e.g. gnabar_hh.

See MechanismStandard._in() for an example.

Syntax:

val = ms.get("varname" [, arrayindex])

Description:

returns the value of the parameter. If the variable is actually a POINTER and it is nil, then return -1e300.

MechanismStandard.save()
Syntax:
ms.save('name')
Description:

For saving the state of a MechanismStandard to a session file. The name will be the objectvar that the instance gets assigned to when the session file is read. See pointman.hoc for an example of usage.

Syntax:

.save("name")

Description:

For saving the state of a MechanismStandard to a session file. The name will be the objectvar that the instance gets assigned to when the session file is read. See pointman.hoc for an example of usage.

MechanismStandard.count()
Syntax:
cnt = ms.count()
Description:

Returns the number of parameter names of the mechanism represented by the MechanismStandard.

Syntax:

cnt = ms.count()

Description:

Returns the number of parameter names of the mechanism represented by the MechanismStandard.

MechanismStandard.is_array()
Syntax:
bool = ms.is_array(index)
Description:

Returns True if the variable associated with the index is an array.

MechanismStandard.name()
Syntax:
ms.name(strref)
size = ms.name(strref, i)
Description:

The single arg form assigns the name of the mechanism to the strref variable.

When the i parameter is present (i ranges from 0 to ms.count()-1) the strref parameter gets assigned the ith name of the mechanism represented by the MechanismStandard. In addition the return value is the array size of that parameter (1 for a scalar).

Example:

from neuron import n, gui

ms = n.MechanismStandard('hh')
name_strref = n.ref('')

# read the name of the mechanism
ms.name(name_strref)

print(name_strref[0])    # displays: hh
Syntax:

ms.name(strdef)

size = ms.name(strdef, i)

Description:

The single arg form assigns the name of the mechanism to the strdef variable.

When the i parameter is present (i ranges from 0 to ms.count()-1) the strdef parameter gets assigned the ith name of the mechanism represented by the MechanismStandard. In addition the return value is the array size of that parameter (1 for a scalar).
