Pseudo-Random Number Generation

Pseudo-random numbers from a variety of distributions may be generated with the Random class. Multiple random number generators are provided; low level access to the mcell_ran4 generator is described in:

mcell_ran4

Random Class

class Random

Python

Syntax:

n.Random()

n.Random(seed)

n.Random(seed, size)

Description:

The Random class provides commonly used random distributions which are useful for stochastic simulations. The default distribution is normal with mean = 0 and standard deviation = 1.

This class is an interface to the RNG class from the gnu c++ class library. As of version 5.2, a cryptographic quality RNG class wrapper for mcell_ran4() was added and is available with the Random.MCellRan4() method. The current default random generator is Random.Random123().

As of version 7.3, a more versatile cryptographic quality generator, Random123, is available with the Random.Random123() method. This generator uses a 34bit counter, up to 3 32 bit identifiers, and a 32 bit global index and is most suitable for managing separate independent, reproducible, restartable streams that are unique to individual cell and synapses in large parallel network models. See: http://www.thesalmons.org/john/random123/papers/random123sc11.pdf

Note that multiple instances of the Random class will produce different streams of random numbers only if their seeds are different.

One can switch distributions at any time but if the distribution is stationary then it is more efficient to use Random.repick() to avoid constructor/destructor overhead.

Example:

from neuron import n

r = n.Random()
for i in range(10):
    print(r.uniform(30, 50)) # not as efficient as

for i in range(10):
    print(r.repick())        # this

prints 20 random numbers ranging in value between 30 and 50.

HOC

Syntax:

Random()

Random(seed)

Random(seed, size)

Description:

The Random class provides commonly used random distributions which are useful for stochastic simulations. The default distribution is normal with mean = 0 and standard deviation = 1.

Note that multiple instances of the Random class will produce different streams of random numbers only if their seeds are different.

One can switch distributions at any time but if the distribution is stationary then it is more efficient to use Random.repick() to avoid constructor/destructor overhead.

Example:

objref r
r = new Random()
for i=1,10 print r.uniform(30, 50) // not as efficient as
for i=1,10 print r.repick()    // this
prints 20 random numbers ranging in value between 30 and 50.

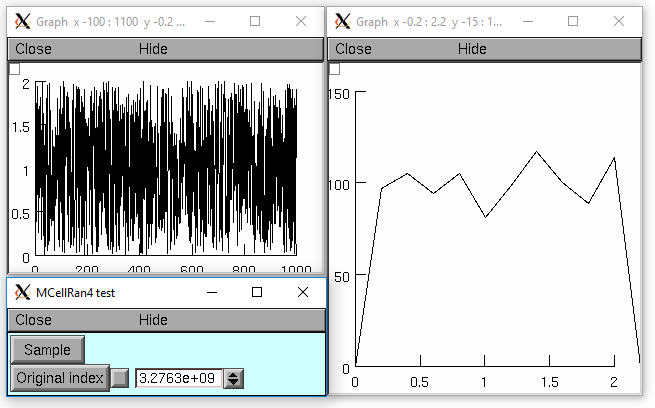

Random.MCellRan4()

Python

Syntax:

highindex = r.MCellRan4()

highindex = r.MCellRan4(highindex)

highindex = r.MCellRan4(highindex, lowindex)

Description:

Use the MCell variant of the Ran4 generator. See mcell_ran4(). In the no argument case or if the highindex is 0, then the system selects an index which is the random 32 bit integer resulting from an mcell_ran4 call with an index equal to the the number of instances of the Random generator that had been created. Thus, each stream should be statistically independent as long as the highindex values differ by more than the eventual length of the stream. In any case, the initial highindex is returned and can be used to restart an instance of the generator. Use mcell_ran4_init() to set the (global) low 32 bit index of the generator. The Random.seq() method is useful for getting the current sequence number and restarting at that sequence number (highindex). If the lowindex arg is present and nonzero, then that lowindex is used instead of the global one specified by mcell_ran4_init(). This allows 2^32-1 independent streams that do not overlap.

Note that for reproducibility, the distribution should be defined AFTER setting the seed since some distributions, such as Random.normal(), hold state information from a previous pick from the uniform distribution.

See also

Random.Random123()

Example:

objref r, vec, g1, g2, hist
r = new Random()
index = r.MCellRan4()
r.uniform(0, 2)
vec = new Vector(1000)
g1 = new Graph()
g2 = new Graph()
g1.size(0, 1000, 0, 2)
g2.size(0, 2, 0, 150)


proc doit() {
    g1.erase() g2.erase()
    vec.setrand(r)
    hist = vec.histogram(0, 2, 0.2)
    vec.line(g1)
    hist.line(g2, .2)
    g1.flush g2.flush
}
doit()


variable_domain(&index, 0, 2^32-1)
xpanel("MCellRan4 test")
xbutton("Sample", "doit()")
xpvalue("Original index", &index, 1, "r.MCellRan4(index) doit()")
xpanel()

Random.Random123()

Python

Syntax:

0 = r.Random123(id1, id2, id3)

Description:

Use the Random123 generator (currently philox4x32 is the crypotgraphic hash used) with the stream identified by the identifiers 0 <= id1,2,3 < 2^32 and the global index (see Random.Random123_globalindex()). The counter, which increments from 0 to 2^34-1, is initialized to 0 (see Random.seq()). If any of the up to 3 arguments are missing, it is assumed 0.

The generators should be usable in the context of threads as long as no instance is used in more than one thread.

This generator uses a 34bit counter, 3 32 bit identifiers, and a 32 bit global index and is most suitable for managing separate independent, reproducible, restartable streams that are unique to individual cell and synapses in large parallel network models. See: http://www.thesalmons.org/john/random123/papers/random123sc11.pdf

HOC

Syntax:

0 = r.Random123(id1, id2, id3)

Description:

The generators should be usable in the context of threads as long as no instance is used in more than one thread.

Random.Random123_globalindex()

Python

Syntax:: uint32 = r.Random123_globalindex([uint32])
Description:: Gets and sets the global index used by all instances of the Random123 instances of Random.

HOC

Syntax:: uint32 = r.Random123_globalindex([uint32])
Description:: Gets and sets the global index used by all instances of the Random123 instances of Random.

Random.seq()

Python

Syntax:

currenthighindex = r.seq()

r.seq(sethighindex)

Description:

For MCellRan4, Gets and sets the current highindex value when the Random.MCellRan4() is in use. This allows restarting the generator at any specified point. Note that the currenthighindex value is incremented every Random.repick(). Usually the increment is 1 but some distributions, e.g. Random.poisson() can increment by more. Also, some distributions, e.g. Random.normal(), pick twice on the first repick but once thereafter.

For Random123, Gets and sets the counter value which ranges from 0 to 2^34-1. The reason the the greater range is that the internal Random123 generators return 4 uint32 values on each call. So that is done only every 4 picks from the generator.

Example:

from neuron import n

r = n.Random()

r.negexp(1)

n.mcell_ran4_init(1)
r.MCellRan4(1)

for i in range(11):
    print(i, r.repick())

r.MCellRan4(1)
for i in range(6):
    print(i, r.repick())

idum = r.seq()
print(f"idum = {idum}")
for i in range(6, 11):
    print(i, r.repick())

print("restarting")
r.seq(idum)
for i in range(6, 11):
    print(i, r.repick())

print("restarting")
r.seq(idum)
for i in range(6, 11):
    print(i, r.repick())

Output:

1.51709661466
0.485175784418
0.212032709823
0.503178330905
0.114339664628
1.28075206782
0.0578608361212
0.26376087479
0.291156947261
3.21937205675
0.409557452659
1.51709661466
0.485175784418
0.212032709823
0.503178330905
0.114339664628
1.28075206782
idum = 7.0
0.0578608361212
0.26376087479
0.291156947261
3.21937205675
0.409557452659
restarting
0.0578608361212
0.26376087479
0.291156947261
3.21937205675
0.409557452659
restarting
0.0578608361212
0.26376087479
0.291156947261
3.21937205675
0.409557452659

HOC

Syntax:

currenthighindex = r.seq() r.seq(sethighindex)

Description:

Example:

objref r
r = new Random()
//r.uniform(0,1)
r.negexp(1)
//r.normal(0,1)
mcell_ran4_init(1)
r.MCellRan4(1)


for i=0, 10 print i, r.repick


r.MCellRan4(1)
for i=0, 5 print i, r.repick
idum = r.seq
print "idum = ", idum
for i=6, 10 print i, r.repick


print "restarting"
r.seq(idum)
for i=6, 10 print i, r.repick


print "restarting"
r.seq(idum)
for i=6, 10 print i, r.repick

Random.repick()

Python

Syntax:: r.repick()
Description:: Pick again from the distribution last used.

HOC

Syntax:: r.repick()
Description:: Pick again from the distribution last used.

Random.play()

Python

Syntax:

r.play(_ref_var)

Description:

At the beginning of every call to fadvance() and finitialize() var is set to a new value equivalent to

var = r.repick()

(but with no interpreter overhead). This is similar in concept to Vector.play(). Play may be called several times for different variables and each variable will get an independent random value but with the same distribution. To disconnect the Random object from its list of variables, either the variables or the Random object must be destroyed.

Example:

from neuron import n

r = n.Random()
# set the distribution
r.uniform(0, 1)

# create a reference, and have the uniform random variable update it at each time step
rv = n.ref(0)
r.play(rv)

# print some random numbers
for i in range(5):
    n.fadvance()
    print(rv[0])

More practically, this might be used with a fixed time step to set, say, n.IClamp[0]._ref_amp for a random current injection.

HOC

Syntax:

r.play(&var)

Description:

At the beginning of every call to fadvance() and finitialize() var is set to a new value equivalent to

var = r.repick()

Example:

// run the single script
// use the PointProcessManager to select IClamp
// set dur of IClamp[0] to 100
// open a new Voltage Graph
objref r
r = new Random()
r.poisson(.01)
r.play(&IClamp[0].amp)
//open a RunControl
// press Init&Run several times

Random.uniform()

Python

Syntax:: r.uniform(low, high)
Description:: Create a uniform random variable over the open interval (low…high).

See examples of this in Random.MCellRan4() and Random.play().

HOC

Syntax:: r.uniform(low, high)
Description:: Create a uniform random variable over the open interval (low…high).

Example:

objref r, vec, g1, g2, hist
r = new Random()
r.uniform(0, 2)
vec = new Vector(1000)
vec.setrand(r)
hist = vec.histogram(0, 2, 0.2)


g1 = new Graph()
g2 = new Graph()
g1.size(0, 1000, 0, 2)
g2.size(0, 2, 0, 150)
vec.plot(g1)
hist.plot(g2, .2)

Random.discunif()

Python

Syntax:: r.discunif(low, high)
Description:: Create a uniform random variable over the discrete integers from low to high.

HOC

Syntax:: r.discunif(low, high)
Description:: Create a uniform random variable over the discrete integers from low to high.

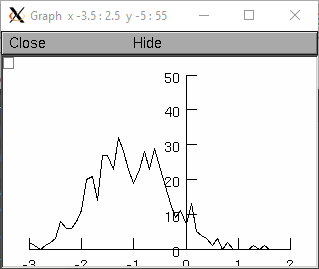

Random.normal()

Python

Syntax:: r.normal(mean, variance)
Description:: Gaussian distribution.

Example:

from neuron import n, gui

r = n.Random()
r.normal(-1, .5)

vec = n.Vector()
vec.indgen(-3, 2, .1)       # x-axis for plot
hist = n.Vector(vec.size())
g = n.Graph()
g.size(-3, 2, 0, 50)
hist.plot(g, vec)
for i in range(500):
    x = r.repick()
    print(i, x)
    j = int((x+3)*10) # -3 to 2 -> 0 to 50
    if j >= 0:
            hist[j] += 1
    g.flush()
    n.doNotify()

HOC

Syntax:: r.normal(mean, variance)
Description:: Gaussian distribution.

Example:

objref r, g, hist, vec
r = new Random()
r.normal(-1, .5)


vec = new Vector()
vec.indgen(-3, 2, .1)       // x-axis for plot
hist = new Vector(vec.size())
g = new Graph()
g.size(-3, 2, 0, 50)
hist.plot(g, vec)
for(i=0; i<500; i=i+1){
    x = r.repick()
    print i, x
    j = int((x+3)*10) // -3 to 2 -> 0 to 50
    if (j >= 0) {
            hist.x[j] = hist.x[j]+1
    }
    g.flush()
    doNotify()
}

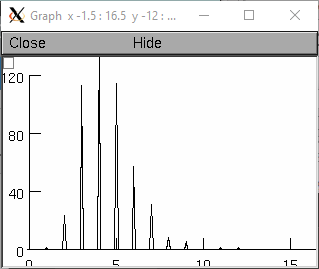

Random.lognormal()

Python

Syntax:: r.lognormal(mean, variance)
Description:: Create a logarithmic normal distribution.

Example:

from neuron import n, gui
r = n.Random()
r.lognormal(5,2)
num=20
xvec = n.Vector(num*3)      # bins look like discrete spikes
for i in range(num):
    xvec[3*i] = i - 0.1
    xvec[3*i+1] = i
    xvec[3*i+2] = i + .1

hist = n.Vector(xvec.size())
g = n.Graph()
g.size(0, 15, 0, 120)
hist.plot(g, xvec)
for i in range(500):
    x = r.repick()
    print(i, x)
    j = 3 * int(x) + 1
    if j >= hist.size():  # don't let any off the edge
            j = hist.size() - 1
    hist[j] = hist[j]+1
    g.flush()
    n.doNotify()

HOC

Syntax:: r.lognormal(mean, variance)
Description:: Create a logarithmic normal distribution.

Example:

objref r, g, hist, xvec
r = new Random()
r.lognormal(5,2)
n=20
xvec = new Vector(n*3)      // bins look like discrete spikes
for i=0,n-1 {
    xvec.x[3*i] = i-.1
    xvec.x[3*i+1] = i
    xvec.x[3*i+2] = i+.1
}
hist = new Vector(xvec.size())
g = new Graph()
g.size(0, 15, 0, 120)
hist.plot(g, xvec)
for(i=0; i<500; i=i+1){
    x = r.repick()
    print i, x
    j = int(x)
    j = 3*j+1
    if (j >= hist.size()) { // don't let any off the edge
            j = hist.size() -1
    }
    hist.x[j] = hist.x[j]+1
    g.flush()
    doNotify()
}

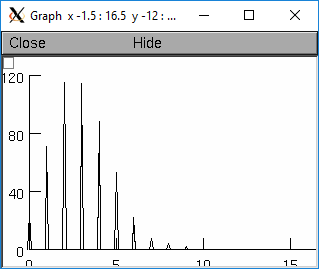

Random.poisson()

Python

Syntax:: r.poisson(mean)
Description:: Create a poisson distribution.

Example:

from neuron import n, gui

r = n.Random()
r.poisson(3)

num=20
xvec = n.Vector(n*3)
for i in range(num):
    xvec[3*i] = i-.1
    xvec[3*i+1] = i
    xvec[3*i+2] = i+.1

hist = n.Vector(xvec.size())
g = n.Graph()
g.size(0, 15, 0, 120)
hist.plot(g, xvec)
for i in range(500):
    x = r.repick()
    print(i, x)
    j = int(x)
    j = 3*j+1
    if j >= hist.size():
            j = hist.size() -1
    hist[j] = hist[j]+1
    g.flush()
    n.doNotify()

HOC

Syntax:: r.poisson(mean)
Description:: Create a poisson distribution.

Example:

objref r, g, hist, xvec


r = new Random()
r.poisson(3)


n=20
xvec = new Vector(n*3)
for i=0,n-1 {
    xvec.x[3*i] = i-.1
    xvec.x[3*i+1] = i
    xvec.x[3*i+2] = i+.1
}
hist = new Vector(xvec.size())
g = new Graph()
g.size(0, 15, 0, 120)
hist.plot(g, xvec)
for(i=0; i<500; i=i+1){
    x = r.repick()
    print i, x
    j = int(x)
    j = 3*j+1
    if (j >= hist.size()) {
            j = hist.size() -1
    }
    hist.x[j] = hist.x[j]+1
    g.flush()
    doNotify()
}

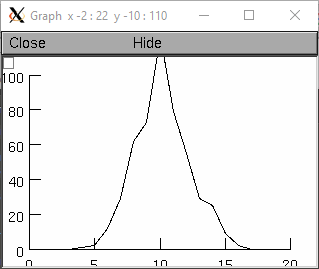

Random.binomial()

Python

Syntax:

r.binomial(N,p)

Description:

Create a binomial distribution. Returns the number of “successes” after N trials when the probability of a success after one trial is p. (n>0, 0<=p<=1).

P(n, N, p) = p * P(n-1, N-1, p) + (1 - p) * P(n, N-1, p)

Example:

from neuron import n, gui

r = n.Random()
r.binomial(20, .5)

g = n.Graph()
g.size(0, 20, 0, 100)
hist = n.Vector(20)
hist.plot(g)
for i in range(500):
    j = int(r.repick()) # r.repick() always returns a float even though the binomial always is an integer
    hist[j] += 1
    g.flush()
    n.doNotify()

HOC

Syntax:

r.binomial(N,p)

Description:

Create a binomial distribution. Returns the number of “successes” after N trials when the probability of a success after one trial is p. (n>0, 0<=p<=1).

P(n, N, p) = p * P(n-1, N-1, p) + (1 - p) * P(n, N-1, p)

Example:

objref r, hist, g
r = new Random()
r.binomial(20, .5)


g = new Graph()
g.size(0, 20, 0, 100)
hist = new Vector(20)
hist.plot(g)
for(i=0; i<500; i=i+1){
    j = r.repick()
    hist.x[j] = hist.x[j]+1
    g.flush()
    doNotify()
}

Random.geometric()

Python

Syntax:: r.geometric(mean)
Description:: Create a discrete geometric distribution. Given 0<=*mean*<=1, return the number of uniform random samples that were drawn before the sample was larger than the mean (always greater than 0).

Example:

from neuron import n, gui

r = n.Random()
r.geometric(.8)
hist = new Vector(1000)
def sample():
    hist = n.Vector(1000)
    hist.setrand(r)
    hist = hist.histogram(0,100,1)
    hist.plot(g)

g = n.Graph()
g.size(0,40,0,200)
sample()
n.xpanel("Resample")
n.xbutton("Resample", sample)
n.xpanel()

HOC

Syntax:: r.geometric(mean)
Description:: Create a discrete geometric distribution. Given 0<=*mean*<=1, return the number of uniform random samples that were drawn before the sample was larger than the mean (always greater than 0).

Example:

objref r, hist, g
r = new Random()
r.geometric(.8)
hist = new Vector(1000)
proc sample() {
    hist = new Vector(1000)
    hist.setrand(r)
    hist = hist.histogram(0,100,1)
    hist.plot(g)
}
g = new Graph()
g.size(0,40,0,200)
sample()
xpanel("Resample")
xbutton("Resample", "sample()")
xpanel()

Random.hypergeo()

Python

Syntax:: r.hypergeo(mean,variance)
Description:: Create a hypergeometric distribution.

HOC

Syntax:: r.hypergeo(mean,variance)
Description:: Create a hypergeometric distribution.

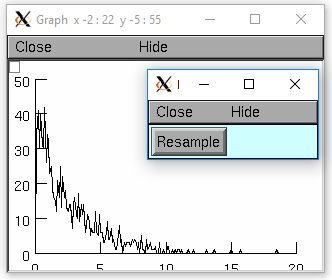

Random.negexp()

Python

Syntax:: r.negexp(mean)
Description:: Create a negative exponential distribution. Distributed as the intervals between events in a poisson distribution.

Example:

from neuron import n, gui

r = n.Random()
r.negexp(2.5)
hist = n.Vector(1000)
def sample():
        hist = n.Vector(1000)
        hist.setrand(r)
        hist = hist.histogram(0,20,.1)
        hist.plot(g, .1)

g = n.Graph()
g.size(0,20,0,50)
sample()
n.xpanel("Resample")
n.xbutton("Resample", sample)
n.xpanel()

HOC

Syntax:: r.negexp(mean)
Description:: Create a negative exponential distribution. Distributed as the intervals between events in a poisson distribution.

Example:

objref r, hist, g
r = new Random()
r.negexp(2.5)
hist = new Vector(1000)
proc sample() {
        hist = new Vector(1000)
        hist.setrand(r)
        hist = hist.histogram(0,20,.1)
        hist.plot(g, .1)
}
g = new Graph()
g.size(0,20,0,50)
sample()
xpanel("Resample")
xbutton("Resample", "sample()")
xpanel()

Random.erlang()

Python

Syntax:: r.erlang(mean,variance)
Description:: Create an Erlang distribution.

HOC

Syntax:: r.erlang(mean,variance)
Description:: Create an Erlang distribution.

Random.weibull()

Python

Syntax:: r.weibull(alpha,beta)
Description:: Create a Weibull distribution.

HOC

Syntax:: r.weibull(alpha,beta)
Description:: Create a Weibull distribution.

NMODLRandom Class

class NMODLRandom

Python

Syntax:

r = point_process.ranvar

r = section(x).mech.ranvar

r = section(x).ranvar_mech

Description:

Returns an NMODLRandom wrapper for the nrnran123_State associated with the mechanism RANDOM ranvar variable. Note that an attempt to assign a value to ranvar will raise an error. At present, all mentions of ranvar in the context of a specific mechanism instance return a wrapper for the same nrnran123_State (though the NMODLRandom instances are different).

NMODLRandom.get_ids()

Python

Syntax:: vector = r.get_ids()
Description:: Returns a HOC Vector of size 3 containing the 32 bit id1, id2, id3 of the nrnran123_State

NMODLRandom.set_ids()

Python

Syntax:: r = r.set_ids(id1, id2, id3)
Description:: Sets the 32 bit id1, id2, id3 of the nrnran123_State and returns the same NModlRandom instance.

NMODLRandom.get_seq()

Python

Syntax:: x = r.get_seq()
Description:: Returns as a float, the 34 bit sequence position of the nrnran123_State

NMODLRandom.set_seq()

Python

Syntax:: r = r.set_seq(x)
Description:: Sets the 34 bit sequence position of the nrnran123_State. Returns the same NMODLRandom instance.

NMODLRandom.uniform()

Python

Syntax:

x = r.uniform()

Description:

Returns as a float, the uniform random value in the open interval 0 to 1 at the current sequence position of the nrnran123_State (the current sequence position is then incremented by 1) This is, for testing purposes, the only distribution exposed to the interpreter. We don’t forsee any practical use of NMODLRandom within the interpreter in regard to sampling. The purpose of NMODLRandom is to allow setting of stream properties for a mod file RANDOM variable. Indeed, if one explicitly constructs an NMODLRandom from the interpreter, then

from neuron import n
r = n.NMODLRandom()
print(r.uniform())

NEURON: NMODLRandom wrapped handle is not valid
