How to translate the view

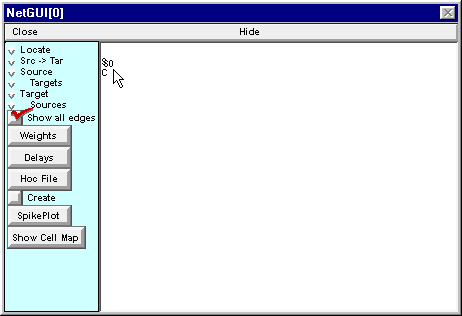

The cell item S0 is too close to the layout item S.

../_images/dbltrbl.gif

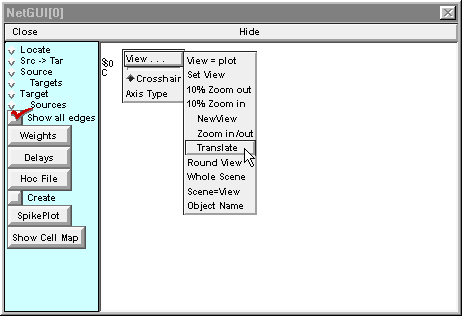

Right click in the graph and keep pressing the button while scrolling the cursor into the secondary graph menu and down to the “Translate” item.

../_images/xlat0.gif

Release the mouse button, then left click in the graph…

../_images/xlat1.gif

and drag the view to the right. The cell item S0 moves with the view, but the layout items S and C stay put.

../_images/xlat2.gif

To exit Translate mode, click on one of the radio buttons (Locate, Src -> Tar, etc.).
